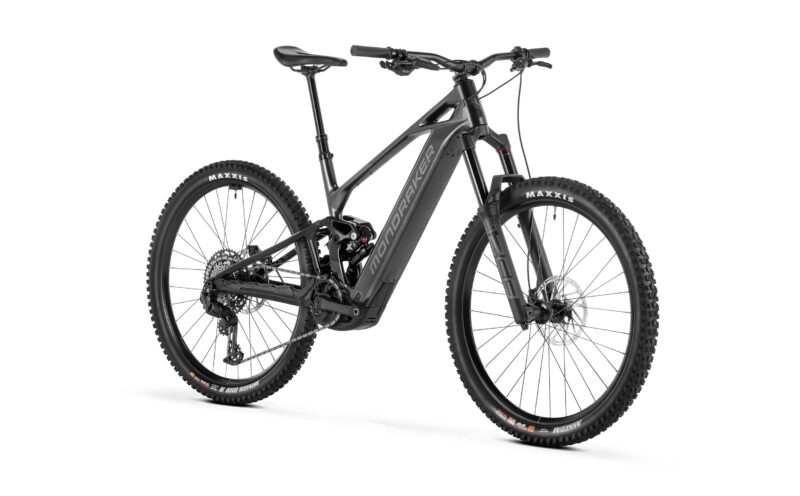

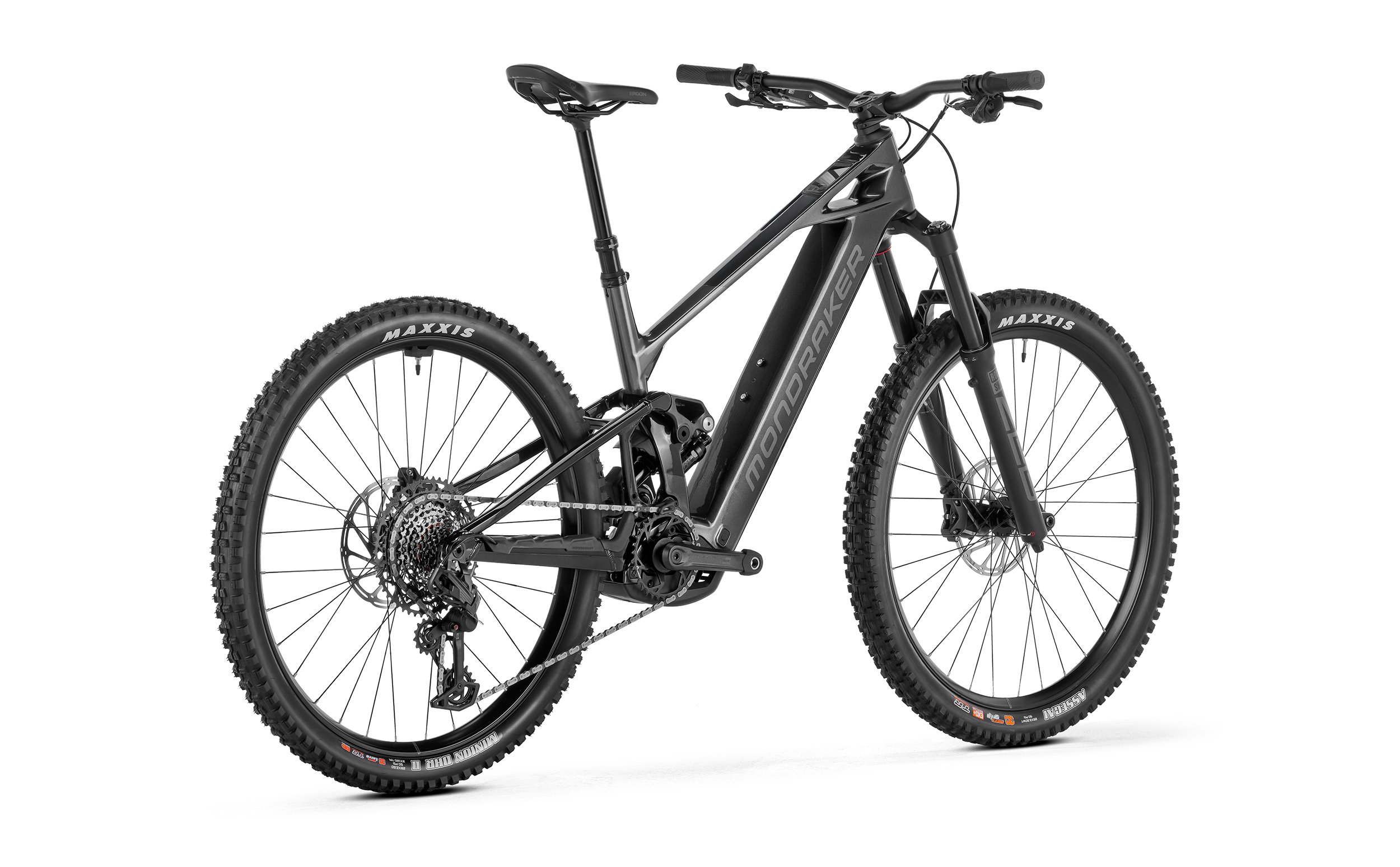

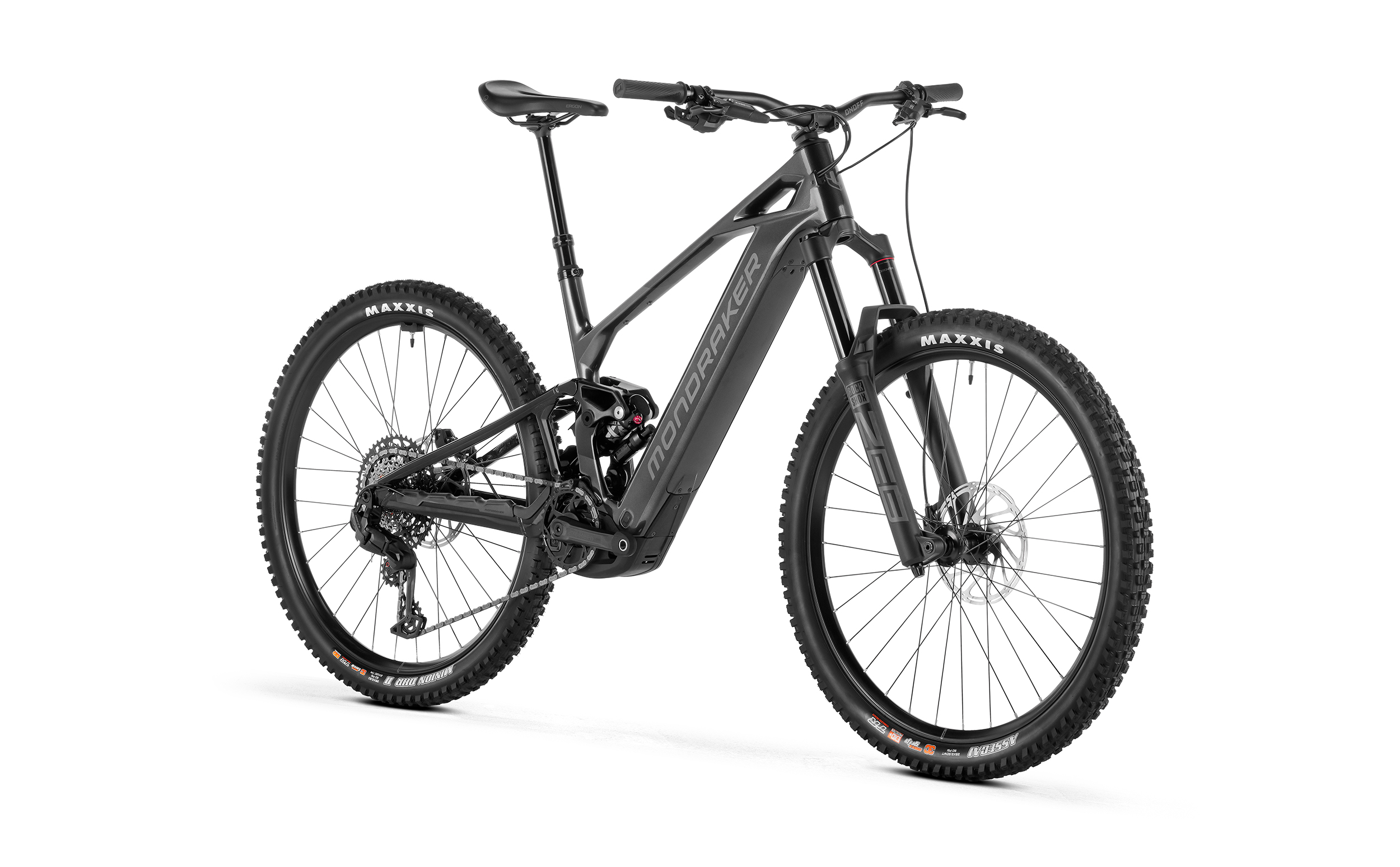

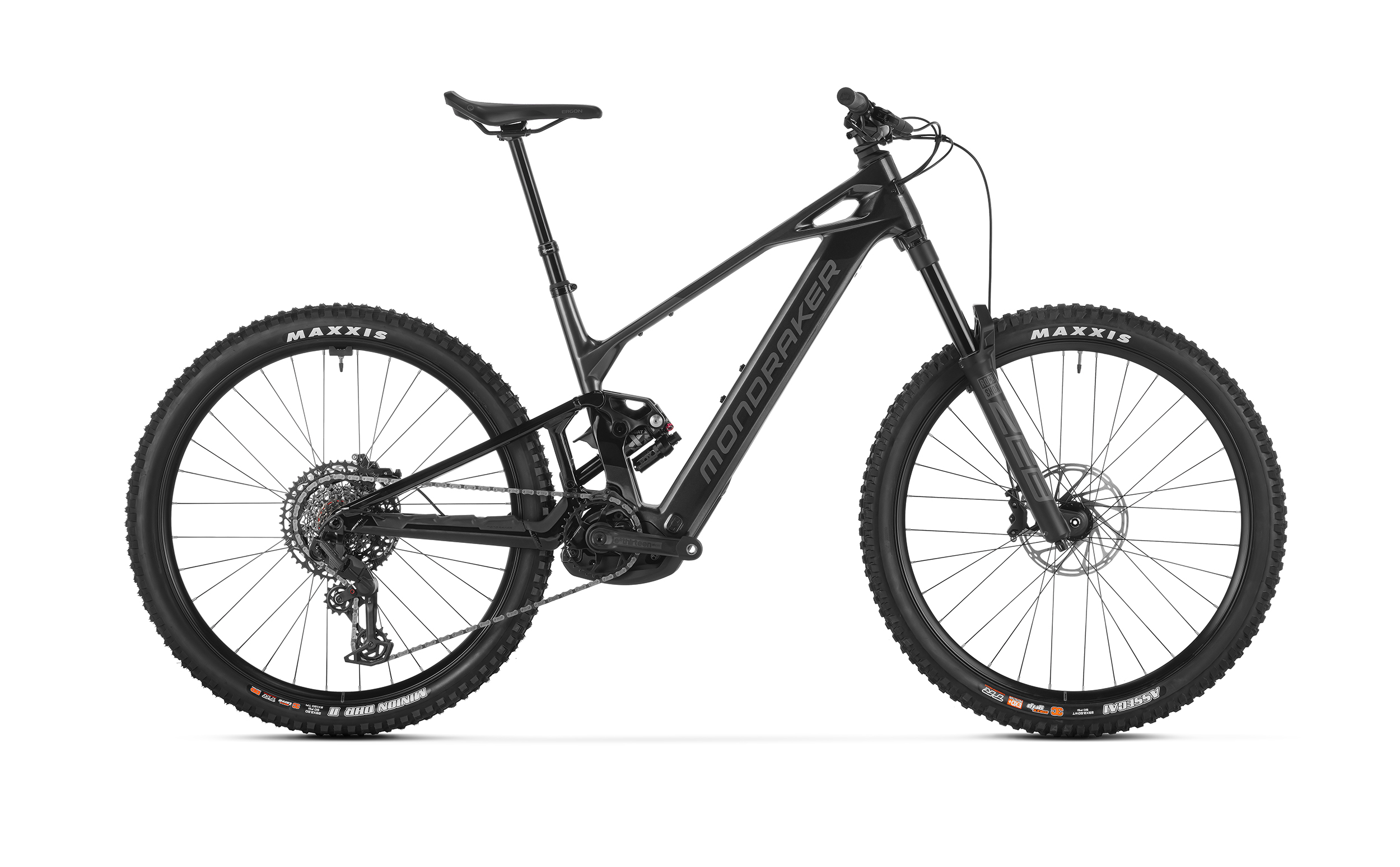

Mondraker Crafty S 2026

Mondraker Crafty S er nå tilgjengelig i den splitter nye 2026-rammen – en oppdatert konstruksjon som kombinerer karbonfront med en solid aluminiums-bakramme. Resultatet er en kraftig og presis el-fulldemper som er bygget for å håndtere alt fra lange stigninger til de røffeste utforkjøringene.

Med den nyeste Bosch Performance Line CX-motoren leverer Crafty S hele 100 Nm dreiemoment, kombinert med et avtagbart 800 Wh batteri som gir deg rekkevidde nok til å utforske lengre og mer krevende turer uten rekkeviddeangst.

Demperoppsettet er balansert for aggressiv stisykling: en RockShox ZEB med 160 mm vandring foran sørger for presisjon og kontroll, mens Mondrakers egen Zero Suspension-system gir 150 mm effektiv vandring bak.

Bremsekraften leveres av pålitelige Sram DB8 firestemplers bremser med 200 mm skiver, og drivverket er det nye mekaniske Sram 70 Eagle T-Type med 12 gir – robust, presist og bygget for å tåle hard bruk.

Mondraker Crafty S 2026 gir deg toppmoderne teknologi, oppdatert rammedesign og pålitelig Bosch-system til en rimeligere pris enn de mest påkostede modellene – uten at det går på bekostning av ytelse og kjøreglede.

Spesifikasjoner

Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear Shock
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock Settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

Fork
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, external rebound, air preload

Headset
Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock

Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise

Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost
X-Fusion Manic diameter 31.6mm, 1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200mm

Saddle
Ergon SM-10

Front Brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear Brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake Lever
Sram DB8 Stealth, tool reach adjust, lever pivot bushings

Rims
WTB Sportterra Tough, 6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes
WTB Straight gauge spokes & black brass locking nipples

Front Hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts

Rear Hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub

Front Tire
Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear Tire
Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm

Chainring
Sram Eagle 34T T-Type, direct mount, steel, CL55

Chain
Sram 70 T-Type, 12s Flattop, PowerLock

Rear Derailleur
Sram 70 Eagle, T-Type, 12s

Shifter
Sram Trigger 70, 12s, T-Type Actuation

Cassette
Sram XS-1270, 10-52T, 12s

Weight
24,3 kg

Display
Bosch Kiox 400C / Bosch Mini Remote

Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) – 100 Nm

Battery
Bosch Powertube 800Wh (avtagbart)
